Understanding the Types of Forces and How to Draw a Free-Body Diagram

Introduction

Forces are the interactions that can cause objects to move or change direction. In this post, we'll cover the types of forces you'll encounter in physics and show you how to draw a free-body diagram to solve force problems. If you're studying physics, mastering these concepts will help you ace your exams!

Types of Forces in Physics

When analyzing problems involving forces, you'll encounter several different types. Let's break them down:

1. Gravitational Force (Weight)

  • Definition: The force pulling an object toward Earth due to gravity.

  • Formula:

    F_gravity = m * g
    • F_gravity is  the gravitational force.
    • m is the mass of the object.
    • g is the acceleration due to gravity (9.8 m/s²).

  • Direction: Always points straight down

    Gravitational force always points downward, pulling objects toward Earth's center.


2. Normal Force

  • Definition: The support force exerted by a surface, perpendicular to the object.
  • When it occurs: Any time an object rests on a surface.
  • Direction: Perpendicular to the surface.

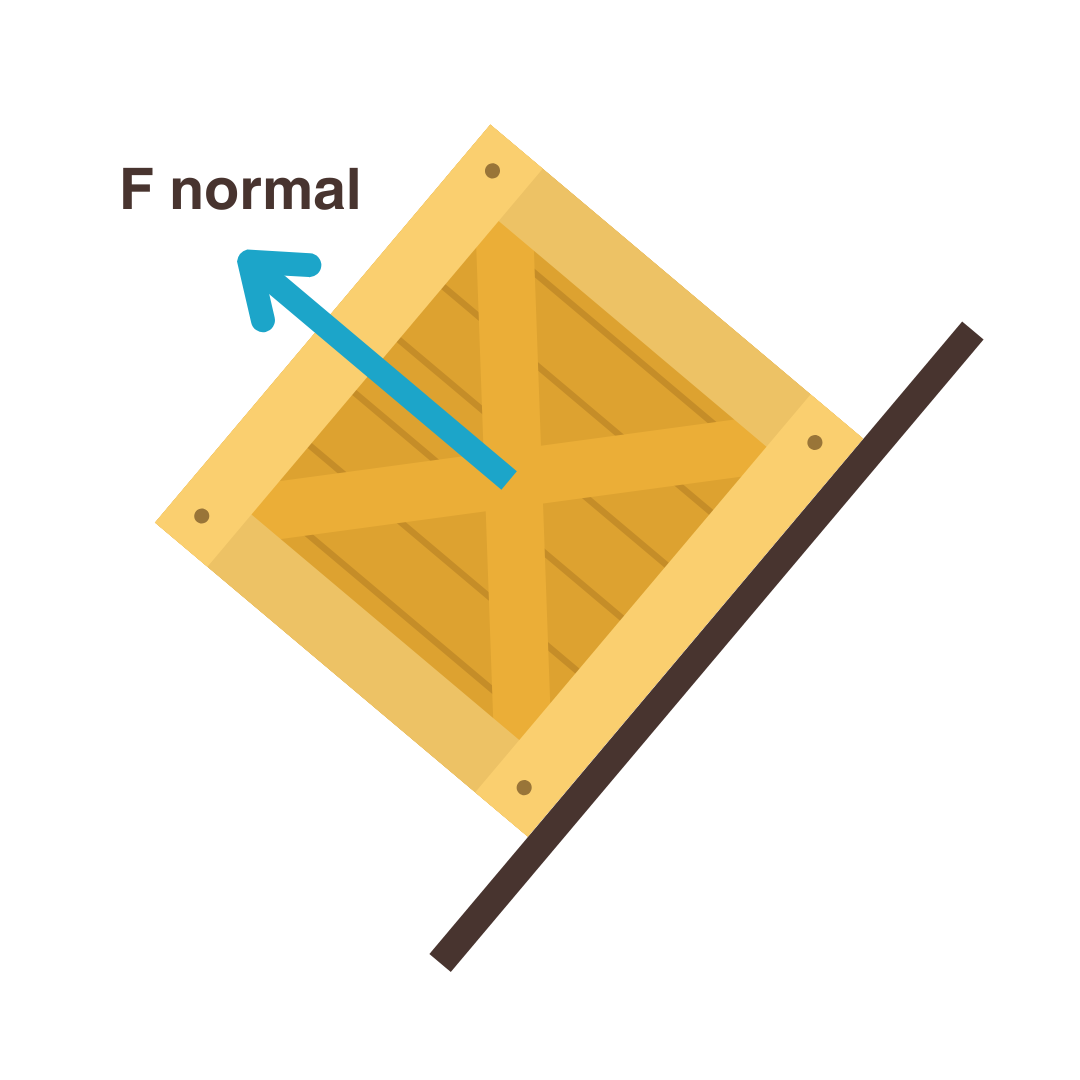

The normal force acts perpendicular to surfaces, supporting the weight of objects.


3. Frictional Force

  • Static Friction: Prevents motion when the object is at rest.

  • Kinetic Friction: Opposes motion when the object is moving.

  • Formula:

    F_friction = μ * F_normal
    • F_friction is the frictional force.
    • μ is the coefficient of friction.
    • F_normal is  the normal force.

  • Direction: Opposite to the direction of motion.

4. Tension Force

  • Definition: The pulling force transmitted through a string, rope, or cable.
  • When it occurs: Whenever a rope pulls an object.
  • Direction: Along the rope, away from the object.


Tension force acts along the rope, pulling objects in the direction of the string.

5. Applied Force

  • Definition: A force applied by a person or another object.
  • Direction: The direction of the applied push or pull.

6. Air Resistance (Drag)

  • Definition: A type of friction acting on objects moving through the air.
  • Direction: Opposes the direction of motion.

7. Spring Force

  • Definition: The force exerted by a stretched or compressed spring.

  • Formula:

    F_spring = -k * x
    • F_spring is the spring force.
    • k is the spring constant.
    • x is the displacement from the equilibrium position.

  • Direction: Opposite to the displacement of the spring.

How to Draw a Free-Body Diagram

A free-body diagram (FBD) is a tool used to visualize the forces acting on an object. Here's a step-by-step guide to drawing an accurate diagram:

Steps for Drawing a Free-Body Diagram

  1. Identify the object you want to analyze.
  2. Simplify the object to a point or box.
  3. Draw force arrows starting from the object. The length of each arrow should represent the magnitude of the force.
  4. Label the forces to indicate their types (e.g., F_gravity, F_normal).
  5. Include angles if forces are acting at an angle, like in inclined plane problems.

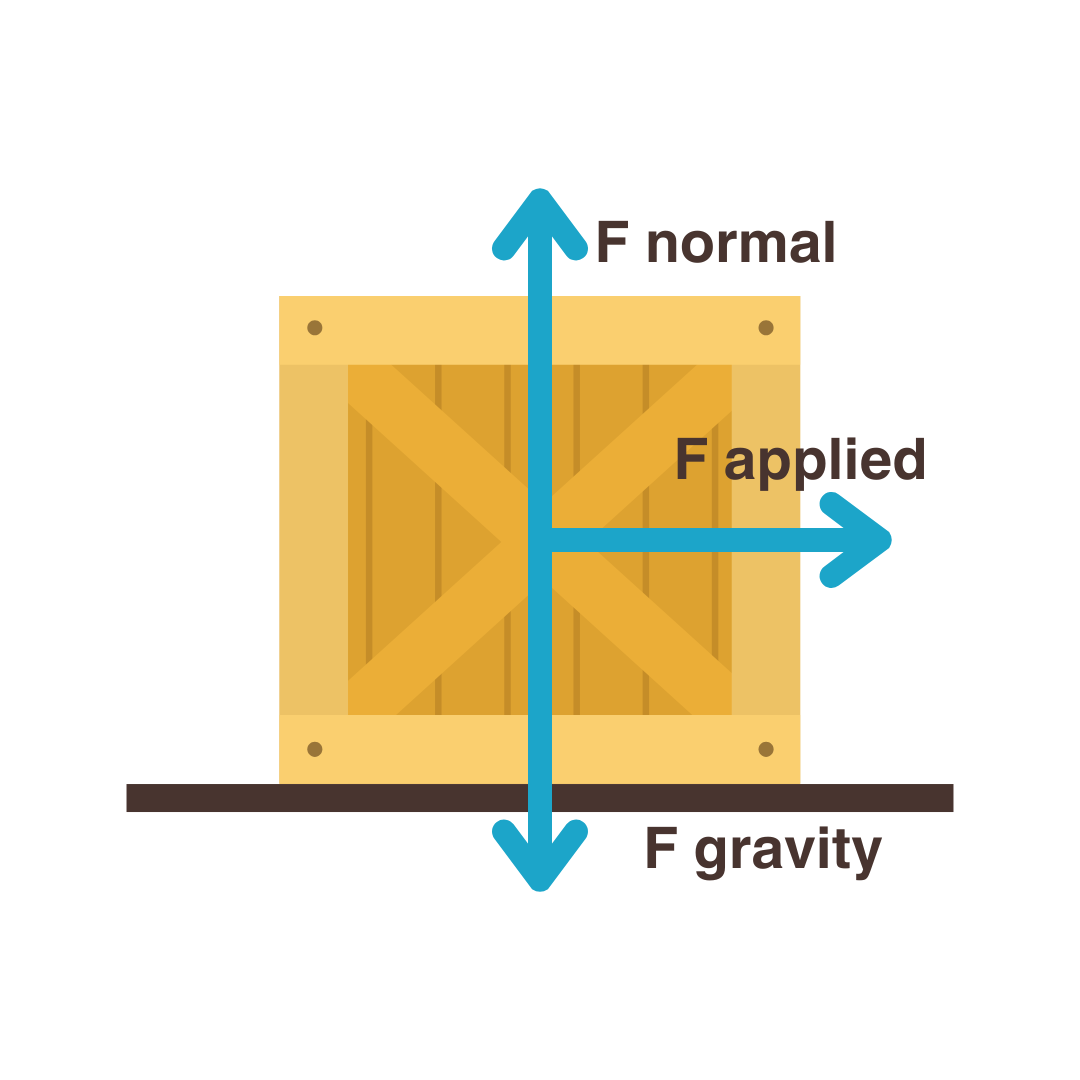

A simple free-body diagram with gravitational, normal, and applied forces acting on a box.

Free-Body Diagram Example: Object on an Inclined Plane

Now, let's apply these steps to a common scenario in physics problems: an object resting on an inclined plane.

  • Gravitational force pulls the object downward.
  • Normal force acts perpendicular to the plane.
  • Friction force opposes any motion along the surface of the plane.

Breaking Down Gravitational Force into Components:

  • Parallel Component (along the plane):

    F_parallel = m * g * sin(θ)

  • Perpendicular Component (normal to the plane):

    F_perpendicular = m * g * cos(θ)

  • m is the mass of the object.

  • g is the acceleration due to gravity.

  • θ is the angle of the incline.

Free-body diagram of a box on an inclined plane, showing the breakdown of gravitational force into parallel and perpendicular components.



Common Types of Force Problems

In force problems, you will usually need to solve for the net force or individual forces acting on an object. Here are some common types:

  1. Objects at Rest: Determine the balance of forces (usually normal force equals gravitational force).
  2. Objects in Motion: Calculate net force, including friction and applied forces.
  3. Inclined Planes: Break gravitational force into components parallel and perpendicular to the incline.
  4. Tension Problems: Analyze forces in ropes and cables.
  5. Circular Motion: Consider centripetal forces acting toward the center of motion.

Conclusion: Mastering Force Problems with Free-Body Diagrams

Understanding the types of forces and knowing how to draw free-body diagrams are critical skills in physics. Start by practicing on simple problems and gradually work your way up to more complex scenarios. With these tools, you'll be well on your way to mastering force problems.
